infineon T系列可控硅分立器件

产品简介

德国英飞凌Infineon公司生产的可控硅分立器件按其性能主要可分为三大系列T系列相控可控硅、 T系列光控可控硅、脉冲电源用可控硅。本公司销售Infineon可控硅保证原装正品，欢迎来电咨询。

产品详情

德国英飞凌		1、T系列相控可控硅 (陶瓷平板型ceramic discs ) 2、T系列相控可控硅 (环氧平板型封装epoxy discs）
		3、T系列光控可控硅（Light Triggered Thyristor） 4、脉冲电源用可控硅 (Pulsed Power Applications Thyristor)

德国英飞凌Infineon大功率电子器件产品线主要有可控硅（晶闸管）、整流二极管、IGBT模块、IGBT单管等，本公司作为Infineon大功率电子器件在中国的经销商，主要销售Infineon可控硅（Infineon晶闸管）、Infineon二极管、Infineon IGBT等，保证原装正品，交货及时，常备现货，价格优惠。

本页面罗列展示Infineon 公司T系列相控可控硅、T系列光控可控硅。

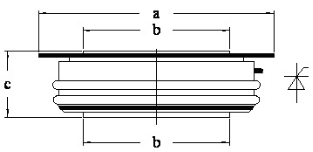

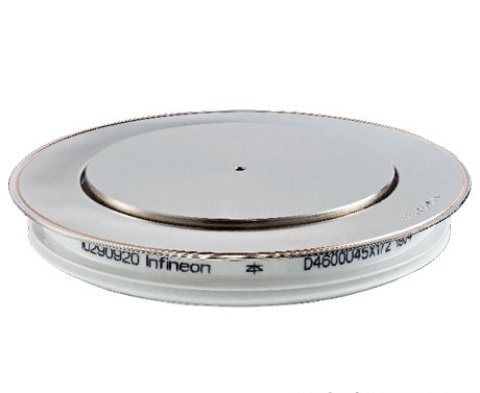

陶瓷外壳可控硅图片与外形尺寸图

环氧平板型封装可控硅图片与外形尺寸图

说明：外形尺寸中，a为最大外径，b为压装台面直径，c为厚度

1. T系列陶瓷外壳相控可控硅

型号	VDRM/VRRM (V)	ITAV (A) @ 85°C	外形尺寸 (mm)
up to 800V
T580N06TOF T580N04TOF T580N02TOF	600 400 200	568	a 42 × b23 × c14.5
T690N06TOF T690N04TOF T690N02TOF	600 400 200	694	a 42 × b23 × c14.5
T920N06TOF T920N04TOF T920N02TOF	600 400 200	925	a 48 × b30 × c14.5
T1080N06TOF T1080N04TOF T1080N02TOF	600 400 200	1075	a 48 × b30 × c14.5
T1410N06TOF T1410N04TOF T1410N02TOF	600 400 200	1490	a 58 × b36 × c14.5
T2510N06TOF VT T2510N04TOF VT T2510N06TOF VT	600 400 200	2509	a 75 × b50× c26.5
T3710N06TOF VT T3710N04TOF VT T3710N02TOF VT	600 400 200	3710	a 100 × b65× c26.5
up to 1800V
T300N18TOF T300N16TOF T300N14TOF T300N12TOF T300N10TOF	1800 1600 1400 1200 1000	303	a 42 × b23 × c14.5
T390N16TOF T390N14TOF T390N12TOF	1600 1400 1200	381	a 42 × b23 × c14.5
T420N18TOF T420N16TOF T420N14TOF T420N12TOF	1800 1600 1400 1200	424	a 48 × b30 × c14.5
T430N18TOF T430N16TOF T430N14TOF T430N12TOF	1800 1600 1400 1200	433	a 42 × b23 × c14.5
T470N12TOF T470N16TOF T470N14TOF	1600 1400 1200	470	a 42 × b23 × c14.5
T560N18TOF T560N16TOF T560N14TOF T560N12TOF	1800 1600 1400 1200	559	a 48 × b30 × c14.5
T590N18TOF T590N16TOF T590N14TOF T590N12TOF	1800 1600 1400 1200	588	a 58 × b36 × c26.5
T640N12TOF T640N18TOF T640N14TOF T640N16TOF	1800 1600 1400 1200	644	a 48 × b30 × c14.5
T680N12TOF T680N14TOF	1400 1200	681	a 48 × b30 × c14.5
T720N12TOF T720N14TOF T720N16TOF T720N18TOF	1800 1600 1400 1200	718	a 58 × b36 × c26.5
T830N18TOF T830N16TOF T830N14TOF T830N12TOF	1800 1600 1400 1200	844	a 58 × b36 × c14.5
T880N18TOF T880N16TOF T880N14TOF T880N12TOF	1800 1600 1400 1200	879	a 58 × b36 × c26.5
T940N18TOF T940N16TOF T940N14TOF T940N12TOF	1800 1600 1400 1200	959	a 58 × b36 × c14.5
T1190N18TOF VT T1190N16TOF VT T1190N14TOF VT T1190N12TOF VT	1800 1600 1400 1200	1190	a 75 × b50× c26.5
T1500N18TOF VT T1500N16TOF VT T1500N14TOF VT T1500N12TOF VT	1800 1600 1400 1200	1500	a 75 × b50× c26.5
T2180N18TOF VT T2180N16TOF VT T2180N14TOF VT T2180N12TOF VT	1800 1600 1400 1200	2180	a 100 × b65× c26.5
T3160N18TOF VT T3160N12TOF VT T3160N14TOF VT T3160N16TOF VT	1800 1600 1400 1200	3160	a 111× b75× c26.5
up to 3000V
T360N28TOF T360N26TOF T360N24TOF T360N22TOF T360N20TOF	2800 2600 2400 2200 2000	360	a48 × b30 × c14.5
T460N26TOF T460N22TOF T460N24TOF	2600 2400 2200	459	a 58 × b36 × c26.5
T660N26TOF T660N24TOF T660N22TOF	2600 2400 2200	659
T700N22TOF T700N20TOF T700N18TOF	2200 2000 1800	699
T740N26TOF T740N24TOF T740N22TOF	2600 2400 2200	745	a 58 × b36 × c14.5
T1040N22TOF VT T1040N20TOF VT	2200 2000	1039	a 75 × b50× c26.5
T1220N28TOF VT T1220N26TOF VT T1220N24TOF VT T1220N22TOF VT T1220N20TOF VT	2800 2600 2400 2200 2000	1220	a 75 × b50× c26.5
T1330N22TOF VT T1330N20TOF VT T1330N18TOF VT	2200 2000 1800	1329	a 75 × b50× c26.5
T1590N28TOF VT T1590N26TOF VT T1590N24TOF VT T1590N22TOF VT	2800 2600 2400	1590	a 100 × b65× c26.5
T1960N22TOF VT T1960N20TOF VT T1960N18TOF VT	2200 2000 1800	1960	a 100 × b65× c26.5
T2160N28TOF VT T2160N24TOF VT T2160N26TOF VT T2160N22TOF VT T2160N20TOF VT	2800 2600 2400 2200 2000	2400	a 111× b75× c26.5
T2480N28TOF VT T2480N26TOF VT T2480N24TOF VT T2480N22TOF VT	2800 2600 2400 2200	2480	a 111× b75× c26.5
T2810N22TOF VT T2810N20TOF VT T2810N18TOF VT T2810N16TOF VT	2200 2000 1800 1600	2810	a 111× b75× c26.5
T4771N28TOF PR T4771N22TOF PR	2800 2200	4340	a 151× b100× c26
up to 5500V
T730N42TOF VT T730N40TOF VT T730N38TOF VT	4200 4000 3800	730	a 75 × b50× c26.5
T731N44TOH T731N42TOF T731N36TOF	4400 4200 3600	870	a 75 × b50× c26.5
T860N36TOF VT T860N32TOF VT T860N30TOF VT	3600 3200 3000	860
T901N36TOF T901N32TOF T901N35TOF	3600 3500 3200	940
T930N36TOF VT T930N34TOF VT T930N32TOF VT	3600 3400 3200	930	a 75 × b50× c26.5
T1401N42TOH	4200	1590	a121× b86× c35
T1451N52TOH	5200	1660	a121× b86× c35
T1551N52TOH PR	5200	1770	a121× b86× c26
T1601N36TOF T1601N35TOF	3600 3500	1900	a121× b86× c35
T1800N42TOF PR	4200	1800	a 111× b75× c26.5
T1930N38TOF VT T1930N32TOF VT T1930N36TOF VT T1930N34TOF VT	3800 3600 3400 3200	2180	a 111× b75× c26.5
T2001N36TOF T2001N34TOF	3600 3400	2060	a121× b86× c26
T2161N52TOH	5200	2070	a121× b86× c35
T2351N52TOH	5200	2250	a121× b86× c26
T2851N52TOH T2851N48TOH T2851N42TOH	5200 4800 4200	2980	a151× b100× c35
T3441N52TOH T3441N48TOH T3441N50TOH	5200 5000 4800	3200	a151× b100× c26
T3801N36TOF VT	3600	3830	a151× b100× c26
T4021N52TOH	5200	3880	a172× b115× c35
up to 10000V
T201N70TOH PR	7000	245	a58× b34× c27
T280N65TOF	6500	280	a58× b36× c27
T501N70TOH	7000	640	a76× b50× c27
T533N80TOH PR	8000	540	a76× b50× c35
T570N65TOF	6500	540	a75× b50× c26
T600N95TOH PR	9500	590	a75× b50× c26
T1060N65TOF PR	6500	1053	a 100 × b65× c26.5
T1081N70TOH T1081N65TOH T1081N60TOH	7000 6500 6000	1300	a121× b86× c27
T1620N65TOF PR	6500	1613	a 111× b75× c26.5
T1651N70TOH PR	7000	1670	a121× b86× c35
T1851N70TOH T1851N65TOH PR T1851N60TOH	7000 6500 6000	1830	a121× b86× c27
T1901N80TOH	8000	2100	a151× b100× c35
T2251N80TOH T2251N70TOH	8000 7000	2260	a151× b100× c26
T2563N80TOH PR	8000	2300	a172× b115× c40
T2871N80TOH	8000	2620	a172× b115× c35

2. T系列环氧平板型封装（epoxy disc case）——产品已经停产，但有的可以找到库存，或用陶瓷封装的替代

型号	VDRM/VRRM (V)	ITAV (A) @ 85°C	外形尺寸 (mm)	空格	型号	VDRM/VRRM (V)	ITAV (A) @ 85°C	外形尺寸 (mm)
Up to 600V					Up to 3000V
T348N02-06TOF	200,400,600	348	a 41 × b23 × c14		T458N20-26TOF	2000…2600	459	a 50 × b30 × c14
T828N02-06TOF	200,400,600	828	a 50 × b30 × c14		T639N18-22TOF	1800…2600	640	a 57 × b36 × c26
T1078N02-06TOF	200,400,600	1078	a 50 × b30 × c14		T658N22-26TOF	2200…2600	659	a 60 × b36 × c14
T1258N02-06TOF	200,400,600	1258	a 60 × b36 × c14		T659N22-26TOF	2200…2600	659	a57 × b36 × c26
T3709N02-06TOF	200,400,600	3709	a 100 × b65 × c26		T699N18-22TOF	1800…2600	699	a57 × b36 × c26
Up to 1800V					T708N18-22TOF	1800…2200	699	a60 × b36 × c14
T178N06-18TOF	600…1800	178	a 41 × b23 × c14		T709N20-26TOF	2000…2600	700	a75 × b48 × c26
T218N06-18TOF	600…1800	218			T829N20-26TOF	2000…2600	829
T298N06-16TOF	600…1600	298			T1039N18-22TOF	1800…2200	1039
T358N06-18TOF	600…1800	358			T1219N20-28TOF	2000…2800	1220
T378N12-16TOF	1200…1600	378			T1329N18-22TOF	1800…2200	1329
T388N06-18TOF	600…1800	388	a 50 × b30 × c14		T1869N16-22TOF	1600…2200	1866	a 100 × b65 × c26
T508N12-18TOF	1200…1800	508	a 50 × b30 × c14		T2159N20-28TOF	2000…2800	2159	a 110 × b75 × c26
T509N12-18TOF	1200…1800	508	a 57 × b36 × c26		T2709N16-22TOF	1600…2200	2709	a 110 × b75 × c26
T588N06-18TOF	600…1800	588	a 50 × b30 × c14		Up to 4500V
T589N06-18TOF	600…1800	588	a 57 × b36 × c26		T379N36-42TOF	3600…4200	422	a 57 × b36 × c26
T618N06-14TOF	600…1400	618	a 50 × b30 × c14		T729N36-42TOF	3600…4200	730	a 75 × b48 × c26
T619N06-14TOF	600…1400	618	a 57 × b36 × c26		T869N30-36TOF	3000…3600	860
T718N06-16TOF	600…1600	718	a 60 × b36 × c14		T929N30-36TOF	3000…3600	930
T878N12-18TOF	1200…1800	878	a 60 × b36 × c14		T1929N30-38TOF	3000…3800	1930	a 110 × b75 × c26
T879N12-18TOF	1200…1800	878	a 57 × b36 × c26		T2009N30-36TOF	3000…3600	2060	a 110 × b75 × c26
T1189N12-18TOF	1200…1800	1190	a75 × b48 × c26
T1509N12-18TOF	1200…1800	1500	a75 × b48 × c26
T1989N12-18TOF	1200…1800	1990	a 100 × b65 × c26
T3159N12-18TOF	1200…1800	3160	a 110 × b75 × c26

3. 光控可控硅 Light Triggered Thyristors

型号	VDRM/VRRM (V)	ITAV (A) @ 85°C	外形尺寸 (mm)
T533N80TOH PR	8000	540	a76× b50× c35
T1503N80TOH PR	8000	1770	a151 × b100 × c40
T1503N75TOH	7500	1770	a151 × b100 × c40
T4003N52TOH PR	5200	3400	a172 × b115 × c40

4. 脉冲电源用可控硅 Pulsed Power Applications Thyristors

型号	VDRM/VRRM (V)	ITAV (A) @ 85°C	外形尺寸 (mm)
T4003NH52TOH	5200	3400	a172 × b115 × c40
T1503NH80TOH	7500	1770	a151 × b100 × c40
T2563NH80TOH	8000	2300	a172 × b115 × c40
