西码westcode N系列相控可控硅

产品简介

英国西码westcode生产的可控硅具有电流大、压降低、电压高等优点。其中本页介绍的N系列相控可控硅按其封装形式有平板型、螺栓型，广泛应用于电气传动、电解铝、软启动、无功补偿等设备中。

产品详情

英国西码可控硅		1、N系列相控可控硅 ---- 平板型 Capsule Types 2、N系列相控可控硅 ---- 螺栓型 Stud Types
		3、R系列分配门极可控硅 Distributed Gate Thyristors ---- 平板型

英国西码westcode公司是德国IXYS集团旗下专业生产电力电子器件的子公司，主要产品有可控硅（晶闸管）、整流二极管等，本公司作为英国西码westcode公司电力电子器件在中国的经销商，主要销售westcode可控硅（westcode晶闸管）、westcode二极管等，保证原装正品，交货及时，常备现货，价格优惠。

westcode可控硅具有电流大、压降低、电压高等优点，广泛应用于电气传动、电解铝、感应加热、软启动、无功补偿等设备中，本公司长期备有以下品种的现货：N280CH16、N330CH26、N280CH16、N350CH16、N370CH16、N490CH26、N540CH18、N600CH16、N750CH40等。

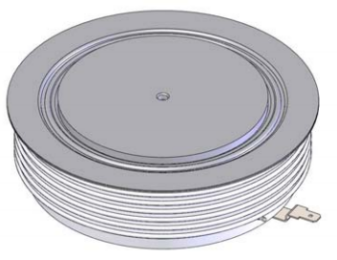

1、N系列相控可控硅 平板型 Capsule Types

Part No.	对应旧型号	VDRM/ VRRM (V)	ITAV (A) @ TC=55°C	Package	外形尺寸	外形图
N0465WN140 N0465WN160		1400 1600	465	W90	a 42× b19 × c14	W90 W91 W10 W11 W12 W13 W14 W15 W46 W48 W51 W62 W70 W 92
N0530YN220 N0530YN250		2200 2500	530	W91	a 42× b25 × c14
N0616LC400 N0616LC450	N255CH40 N255CH45	4000 4500	616	W10	a 58.5× b34 × c27
N0634LC380 N0634LC420	N257CH38 N255CH42	3800 4200	634
N0646LC300 N0646LC360	N260CH30 N260CH36	3000 3600	646
N0734YN120 N0734YN160	N280CH12 N280CH16	1200 1600	734	W91	a 42× b25 × c14
N0795YN140 N0795YN180		1400 1800	795	W91	a 42× b25 × c14
N0882NC400 N0882NC450	N320CH40 N320CH45	4000 4500	882	W11	a74× b47 × c27
N0910LC200 N0910LC260	N330CH20 N330CH26	2000 2600	910	W10	a 58.5× b34 × c27
N1010NC300 N1010NC380	N360CH30 N360CH38	3000 3800	1010	W11	a74× b47 × c27
N1042LS160 N1042LS180	N350CH16 N350CH18	1200 1600 1800	1042	W10	a 58.5× b34 × c27
N1075LN180		1800	1240	W92	a 58× b34 × c26
N1114LS160 N1114LS180	N370CH16 N370CH18	1200 1600 1800	1114	W10	a 58.5× b34 × c27
N1132NC300 N1132NC320	N390CH30 N390CH32	3000 3200	1132	W11	a74× b47 × c27
N1140LN140		1400	1315	W92	a 58× b34 × c26
N1159NC380 N1159NC420	N500CH38 N500CH42	3800 4200	1159	W11	a74× b47 × c27
N1174JK200 N1174JK220		2000 2200	1174	WP1	a 50× b32 × c14
N1263JK160 N1263JK180		1600 1800	1263	WP1	a 50× b32 × c14
N1314NC300 N1314NC360	N570CH30 N570CH36	3000 3600	1314	W11	a74× b47 × c27
N1351VC400 N1351VC450	N560CH40 N560CH45	4000 4500	1351	W12	a 101× b63 × c33
N1351VF400 N1351VF450		4000 4500	1351	W62	a 100× b63 × c26
N1366JK08 N1366JK120 N1366JK140		800 1200 1400	1366	WP1	a 50× b32 × c14
N1449QL200 N1449QL220		2000 2200	1449	WP6	a 58× b38 × c26
N1467NC200 N1467NC260	N490CH20 N490CH26	2000 2600	1467	W11	a74× b47 × c27
N1479NC24R N1479NC30R	N620CH24 N620CH30	2400 3000	1436	W36	a 74× b47 × c27
N1479NC240 N1479NC300		2400 3000	1436	W11	a74× b47 × c27
N1547NC160 N1547NC200	N510CH16 N510CH20	1600 2000	1547	W11	a74× b47 × c27
N1581QL160 N1581QL180		1600 1800	1581	WP6	a 58× b38 × c26
N1588NC200 N1588NC260	N680CH20 N680CH26	2000 2600	1588	W11	a74× b47 × c27
N1651QK200 N1651QK220		2000 2200	1651	WP2	a 58× b38 × c14
N1661VC300 N1661VC360	N630CH30 N630CH36	3000 3600	1661	W12	a 101× b63 × c33
N1661VF300 N1661VF360		3000 3600	1661	W62	a 100× b63 × c26
N1712VC240 N1712VC300	N640CH24 N640CH30	2400 3000	1712	W12	a 101× b63 × c33
N1712VF240 N1712VF300		2400 3000	1712	W62	a 100× b63 × c26
N1718NC120 N1718NC180 N1718NC200	N540CH12 N540CH18	1200 1800 2000	1718	W11	a74× b47 × c27
N1725MC320 N1725MC360		3200 3600	1725	W70	a 74× b50 × c26
N1802NC120 N1802NC160	N600CH12 N600CH16	1200 1600	1802	W11	a74× b47 × c27
N1806QK160 N1806QK180		1600 1800	1806	WP2	a 58× b38 × c14
N1817QL080 N1817QL160 N1817QL180		800 1600 1800	1817	WP6	a 58× b38 × c26
N2015ML200 N2015ML220		2000 2200	2015	WP5	a 74× b50 × c26
N2046NC120 N2046NC160	N740CH12 N740CH16	1200 1600	2046	W11	a74× b47 × c27
N2055MC260 N2055MC280		2600 2800	2105	W70	a 74× b50 × c26
N2083QK080 N2083QK120 N2083QK140		800 1200 1400	2083	WP2	a 58× b38 × c14
N2086NC060 N2086NC0100	N610CH06 N610CH10	600 1000	2086	W11	a74× b47 × c27
N2154JK020 N2154JK040 N2154JK060		200 400 600	2154	WP1	a 50× b32 × c14
N2172ZC400 N2172ZC450	N750CH40 N750CH45	4000 4500	2172	W13	a 110× b73 × c36
N2172ZD400 N2172ZD450		4000 4500	2172	W46	a 110× b73 × c26
N2191ML160 N2191ML180		1600 1800	2191	WP5	a 74× b50 × c26
N2293VC180 N2293VC220	N760CH18 N760CH22	1800 2200	2293	W12	a 101× b63 × c33
N2293VF180 N2293VF220		1800 2200	2293	W62	a 100× b63 × c26
N2367MK200 N2367MK220		2000 2200	2367	WP3	a 74× b50 × c14	WP1 WP2 WP3 WP4
N2418ZC300 N2418ZC360	N850CH300 N850CH36	3000 3600	2418	W13	a 110× b73 × c36
N2418ZD300 N2418ZD360		3000 3600	2418	W46	a 110× b73 × c26
N2500VC120 N2500VC160		1200 1600	2500	W12	a 101× b63 × c33
N2500VF120 N2500VF160		1200 1600	2500	W62	a 100× b63 × c26
N2520ML080 N2520ML120 N2520ML140		800 1200 1400	2520	WP5	a 74× b50 × c26
N2543ZC240 N2543ZC300	N880CH24 N880CH30	2400 3000	2543	W13	a 110× b73 × c36
N2543ZD240 N2543ZD300		2400 3000	2543	W46	a 110× b73 × c26
N2593MK160 N2593MK180		1600 1800	2593	WP3	a 74× b50 × c14
N2600MC160 N2600MC180		1600 1800	2600	W70	a 74× b50 × c26
N2825TE400 N2825TE450		4000 4500	2825	W82	a 112× b75 × c35
N2825TJ400 N2825TJ450		4000 4500	2825	W81	a 112× b75 × c26
N2830HE260 N2830HE280		2600 2800	2830	W80	a 100× b66 × c35
N2900QL020 N2900QL040 N2900QL060		200 400 600	2900	WP6	a 58× b38 × c26
N3012ZC200 N3012ZC260	N900CH20 N900CH26	2000 2600	3012	W13	a 110× b73 × c36
N3012ZD200 N3012ZD260		2000 2600	3012	W46	a 110× b73 × c26
N3022MK080 N3022MK120 N3022MK140		800 1200 1400	3022	WP3	a 74× b50 × c14
N3029ZC240 N3029ZC280		2400 2800	3029	W13	a 110× b73 × c36
N3029ZD240 N3029ZD280		2400 2800	3029	W46	a 110× b73 × c26
N3165HA260 N3165HA280		2600 2800	3165	W79	a 100× b66 × c26
N3175HE160 N3175HE180		1600 1800	3175	W80	a 100× b66 × c35
N3229QK020 N3229QK040 N3229QK060		200 400 600	3229	WP2	a 58× b38 × c14
N3533ZC180 N3533ZC220	N1400CH18 N1400CH22	1800 2200	3533	W13	a 110× b73 × c36
N3533ZD180 N3533ZD220		1800 2200	3533	W46	a 110× b73 × c26
N3565HA160 N3565HA180		1600 1800	3565	W79	a 100× b66 × c26
N3597ML020 N3597ML040 N3597ML060		200 400 600	3597	WP5	a 74× b50 × c26	WP5 WP6 W36 W79 W80 W81 W82
N3790TE240 N3790TE280		2400 2800	3790	W82	a 112× b75 × c35
N3790TJ240 N3790TJ280		2400 3000	3790	W81	a 112× b75 × c26
N3839TC300 N3839TC350	N1663CH30 N1663CH35	3000 3500	3839	W14	a 112× b75 × c26
N3839TD300 N3839TD350		3000 3500	3839	W51	a 112× b75 × c35
N3880ZD160 N3880ZD180		1600 1800	3880	W46	a 110× b73 × c26
N3904HK200 N3904HK220		2000 2200	3904	WP4	a 100× b68 × c14
N3930ZC120 N3930ZC160		1200 1600	3930	W13	a 110× b73 × c36
N3930ZD120 N3930ZD160		1200 1600	3930	W46	a 110× b73 × c26
N4085ZC080 N4085ZC120	N1600CH08 N1600CH12	800 1200	4085	W13	a 110× b73 × c36
N4085ZD080 N4085ZD120		800 1200	4085	W46	a 110× b73 × c26
N4151FC360 N4151FC420		3600 4200	4151	W15	a 144× b99 × c35
N4151FD360		3600 4200	4151	W48	a 144× b99 × c26
N4316MK020 N4316MK040 N4316MK060		200 400 600	4316	WP3	a 74× b50 × c14
N4340TE180 N4340TE220		1800 2200	4340	W82	a 112× b75 × c35
N4340TJ180 N4340TJ220		1800 2200	4340	W81	a 112× b75 × c26
N4472HK160 N4472HK180		1600 1800	4472	WP4	a 100× b68 × c14
N4803FC300 N4803FC350	N1683CH30 N1683CH35	3000 3500	4803	W15	a 144× b99 × c35
N4803FD300 N4803FD350		3000 3500	4803	W48	a 144× b99 × c26
N5177FC200 N5177FC280	N1883CH20 N1883CH28	2000 2800	5177	W15	a 144× b99 × c35
N5177FD200 N5177FD280		2000 2800	5177	W48	a 144× b99 × c26
N5946FC180 N5946FC220	N1983CH18 N1983CH22	1800 2200	5946	W15	a 144× b99 × c35
N5946FD180 N5946FD220		1800 2200	5946	W48	a 144× b99 × c26
N6012ZD020 N6012ZD040 N6012ZD060		200 400 600	6012	W46	a 110× b73 × c26
N6974HK020 N6974HK040 N6974HK060		200 400 600	6974	WP4	a 100× b68 × c14

2、N系列相控可控硅 螺栓型 Stud Types

Part No.	VDRM/ VRRM (V)	ITAV (A) @ TC=55°C	Package	螺栓尺寸	外形照片
N0131SH120 N0131SH160	1200 1600	131	W17	1/2 inch	W17 W18
N0180SH120 N0180SH160	1200 1600	180	W17	1/2 inch
N0290SC120 N0290SC160	1200 1600	290	W18	3/4 inch
N0335SC120 N0335SC160	1200 1600	335
N0416SC040 N0416SC080	400 800	416
