德国semikron赛米控三相整流桥

产品简介

德国Semikron赛米控公司生产的整流桥模块，内部拓扑结构丰富，按输入交流电相数可分为单相桥、三相桥。本页介绍Semikron三相桥。本公司长期备有以下现货三相桥：SKD62/16、 SKD82/16、 SKD110/16、 SKD160/16、 SKD210/16等。

产品详情

德国semikron 整流桥

1、单相整流桥

2、三相整流桥

德国semikron赛米控桥式整流器将整流电路的所有分支集成在单个紧凑的外壳中。其电流范围从几安培到数百安培不等，具有不同的封装形式。赛米控提供单相或三相拓扑结构的桥式整流器模块，带或不带制动斩波器。桥式整流器模块具有不同封装形式，如SEMiX、SEMITOP、SEMIPONT、Power Bridge和MiniSKiiP。

本公司作为德国semikron赛米控桥式整流器中国经销商长期备有现货。

2. 三相整流桥

外形尺寸

Case G 11b (29x29x10)

G13 (55x45x24)

Case G 50a (29x29x10)

G50b (29x29x10)

G51 (90x29x18)

G55 (63.5x29.5x17)

DBI (40x20x10)

SEMIPONT 1 (63x32x22)

SEMIPONT 2 (65x48x36)

SEMIPONT 3 (72x42x30)

SEMIPONT 4 (94x54x32)

SEMIPONT 5 (81x46x17)

SEMIPONT 6 (100x45x17)

SEMITOP 2 (41x28x12)

SEMITOP 2 Press-Fit

(28x40.5x12)

SEMITOP 3 (55x31x12)

SEMiX 5p (130x70x17)

SEMiX 13 (138x71x17)

型号列表

内部连接图	Product Type	VDRM/VRRM (V)	ID (A)	IFSM/ITSM (A)	外型
DH	DBI 6	400-1800	9	150	DBI (40x20x10)
	DBI 6 P	400-2200	9	165
	DBI 25	400-1800	25	310
	DBI 25 P	400-2200	27	310
D	SEMiX251D12Fs	1200	256	1330	SEMiX 13 (138x71x17)
	SEMiX291D16s	1600	232	1380
	SEMiX341D16s	1600	348	2000
	SEMiX501D17Fs	1700	494	2140
	SK 55 D	800-1600	55	200	SEMITOP 2 (41x28x12)
	SK 70 D	800-1600	70	270	SEMITOP 2 (41x28x12)
	SK 80 D 12F	1200	80	550	SEMITOP 3 (55x31x12)
	SK 95 D	800-1600	95	560	SEMITOP 2 (41x28x12)
	SK 95 D 16p	1600	95	560	SEMITOP 2 Press-Fit (28x40.5x12)
DT-T	SEMiX245DH16	1600	336	1800	SEMiX 5p (130x70x17)
DT-T	SEMiX365DH16	1600	484	2750	SEMiX 5p (130x70x17)
DH	SEMiX241DH16s	1600	298	1800	SEMiX 13 (138x71x17)
	SK 40 DH	800-1600	42	270	SEMITOP 3 (55x31x12)
	SK 70 DH	800-1600	68	270	SEMITOP 3 (55x31x12)
	SKDH 100	800-1400	100	850	SEMIPONT 2 (65x48x36)
	SKDH 115	1200-1600	110	950	SEMIPONT 5 (81x46x17)
	SKDH 145	1200-1600	145	1250	SEMIPONT 5 (81x46x17)
DT	SK 40 DT	800-1600	42	270	SEMITOP 3 (55x31x12)
	SK 70 DT	800-1600	68	380	SEMITOP 3 (55x31x12)
	SKDT 60	400-1400	60	400	SEMIPONT 2 (65x48x36)
	SKDT 115	1200-1600	110	950	SEMIPONT 5 (81x46x17)
	SKDT 145	1200-1600	145	1250	SEMIPONT 5 (81x46x17)
SKD	SKD 25	200-1600	20	320	Case G 11b (29x29x10)
	SKD 26	400-1600	20	320	G50b (29x29x10)
	SKD 30	200-1600	30	320	G13 (55x45x24)
	SKD 31	200-1600	31	320	SEMIPONT 1 (63x32x22)
	SKD 33	400-1800	33	240	G55 (63.5x29.5x17)
	SKD 35	400-1600	36	320	Case G 11b (29x29x10)
	SKD 35 AV	1200-1600	39	345	Case G 11b (29x29x10)
	SKD 51	400-1800	50	700	G51 (90x29x18)
	SKD 53	400-1800	53	270	G55 (63.5x29.5x17)
	SKD 60	400-1600	60	850	SEMIPONT 2 (65x48x36)
	SKD 62	400-1800	60	425	SEMIPONT 3 (72x42x30)

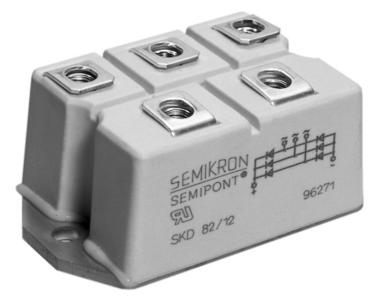

	SKD 82	400-1800	80	640	SEMIPONT 3 (72x42x30)
	SKD 83	400-1800	83	560	G55 (63.5x29.5x17)
	SKD 100	400-1600	100	1000	SEMIPONT 2 (65x48x36)
	SKD 110	800-1800	110	1000	SEMIPONT 4 (94x54x32)
	SKD 115	1200-1800	110	1150	SEMIPONT 5 (81x46x17)
	SKD 145	1200-1800	145	1700	SEMIPONT 5 (81x46x17)
	SKD146_16-L140	1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 160	800-1800	205	1500	SEMIPONT 4 (94x54x32)
	SKD 210	900-1800	207	1600	SEMIPONT 4 (94x54x32)
SKD-chopper	SKD116_18-L75	1800	110	1050	SEMIPONT 6 (100x45x17)
	SKD 116-16 L105	1200-1600	110	1050	SEMIPONT 6 (100x45x17)
	SKD 116-12 L140	1200-1600	110	1050	SEMIPONT 6 (100x45x17)
	SKD 146/12-L140	1200	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/16-L140	1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/..-L105	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/..-L140T4	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
DH-chopper	SKDH 116/..L105	1200-1600	110	1000	SEMIPONT 6 (100x45x17)
	SKDH 116/..L140	1200-1600	110	1000	SEMIPONT 6 (100x45x17)
	SKDH 146/..-L105	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
	SKDH 146/..-L140	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
